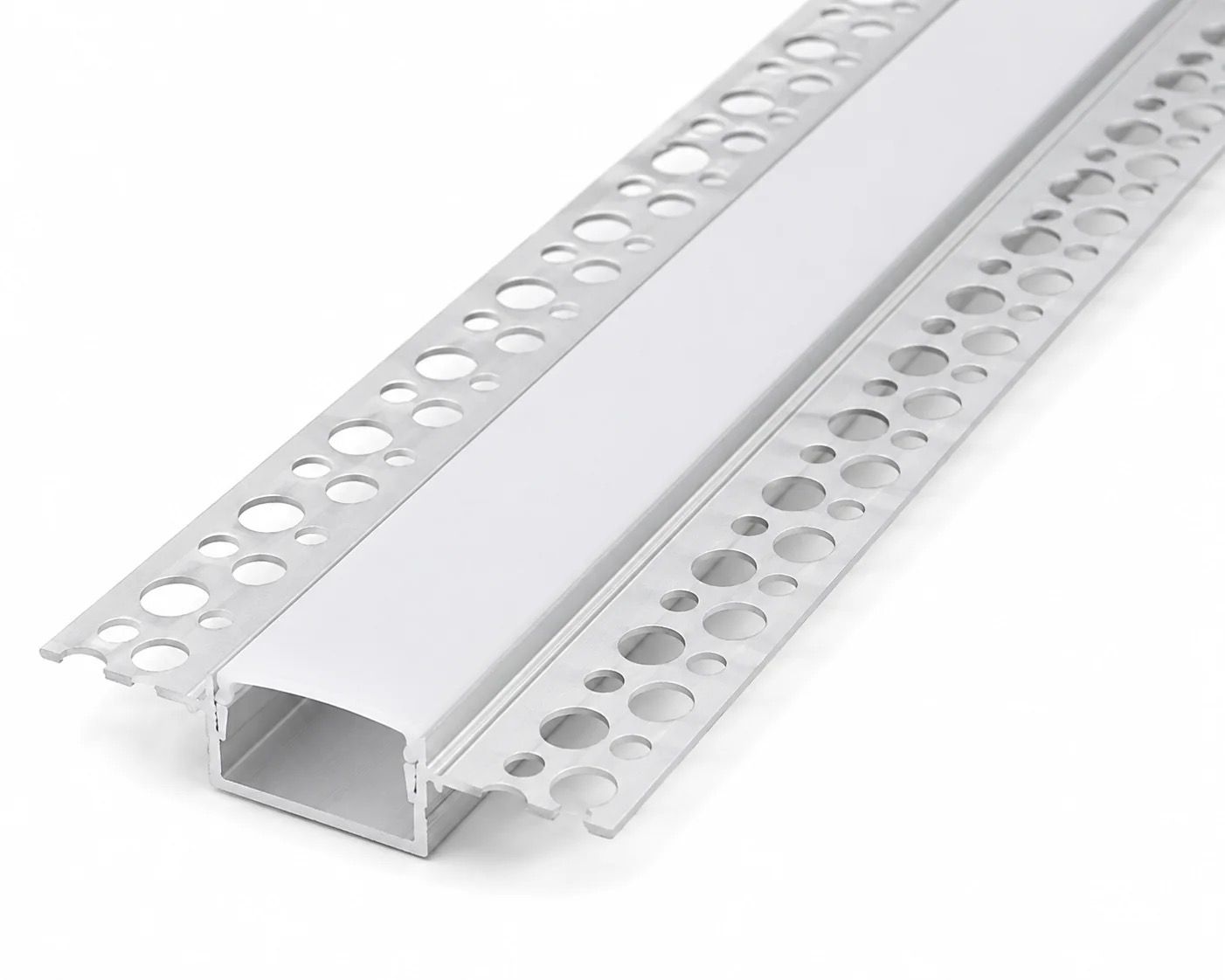

1" Trimless Post-Drywall Aluminum Profile - Silver | PVAC-F72

The PVAC-F72 is a trimless post-drywall aluminum profile designed for seamless architectural lighting where wider, higher-output LED strips are required. Installed after drywall and finished with plaster or joint compound, the F72 creates a frameless recessed light line that blends cleanly into walls and ceilings with no visible trim.

Featuring a 21mm inner channel, the PVAC-F72 is designed to accommodate a wide range of LED strips, including standard 8–10mm COB and SMD strips, as well as 15mm high-output Wide LED strips. The silver anodized aluminum body provides excellent heat dissipation, while the white opal diffuser delivers smooth, dot-free illumination ideal for modern architectural lighting applications.

The PVAC-F72 includes two end caps, one open for wire pass-through and one closed,to ensure a clean, professional installation.

Includes:

• White opal diffuser
• 2 × end caps (1 open + 1 closed)

Dimensions:

• Outer Body: 23 × 7mm (0.91" × 0.28")
• Inner Channel: 21mm (0.83")

LED Strip Compatibility:

• 8mm LED Strips
• 10mm LED Strips
• 15mm Wide LED Strips
• COB LED Strips
• SMD LED Strips
• Ideal for high-output trimless architectural lighting
