PV| Trim less Pre Drywall Aluminum Profile - Silver - 12.2mm inside

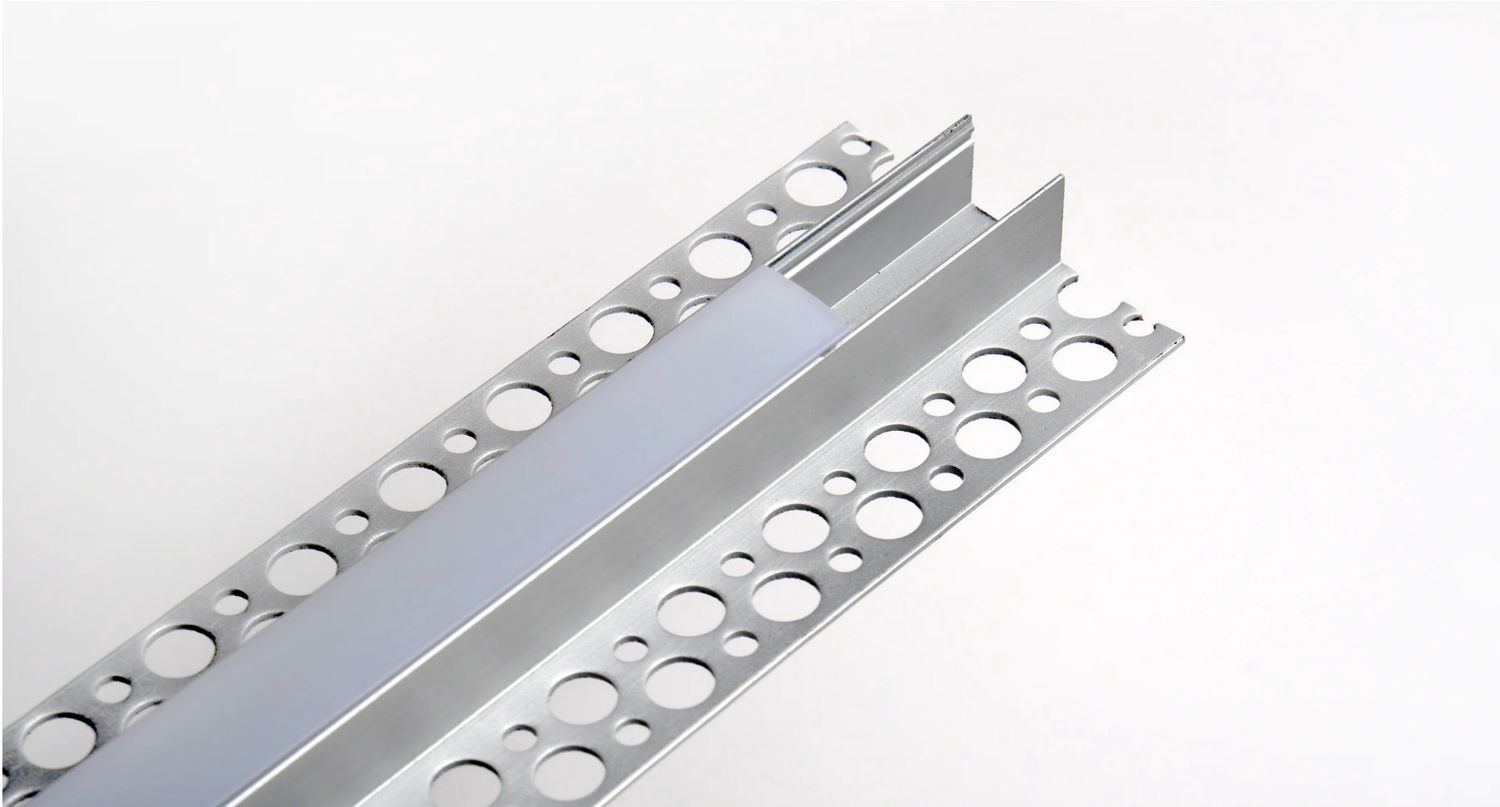

The PVAC-F35 is a pre-drywall trim less aluminum profiledesigned for seamless architectural lighting installations. Featuring mud-in wings positioned at the base of the channel, this profile mounts directly to wall or ceiling framing before drywall is installed.

Once the drywall is applied and plastered over the wings, the profile becomes fully integrated, creating a modern, frameless recessed light line that blends naturally into the surrounding surface with no visible trim.

With a 12.2mm inner channel and 14.6mm × 13.7mm body, the PVAC-F35 supports wider LED strips, including COB and high-output SMD models. The included white opal diffuserdelivers a soft, uniform glow ideal for architectural accents.

Recommended Applications:
• Pre-drywall ceiling or wall linear lighting
• Architectural feature lines
• Residential and commercial trimless lighting
• Ambient perimeter or vertical wall illumination
• Modern LED-integrated design projects

Included Components:
• White opal diffuser
• 2 × end caps (open + closed)

Dimensions:

• Outer body: 14.6mm (W) × 13.7mm (H)

• Inner channel width: 12.2mm

Profile Style:

• Pre-drywall (mud-in wings at bottom)

• Trimless / frameless installation

Finish:

• Silver anodized

Diffuser:

• White opal (soft uniform illumination)

Materials:

• Aluminum extrusion

• Polycarbonate diffuser

Accessories Included:

• 2 × end caps (open + closed)

LED Strip Compatibility:

• Up to 12mm LED strips

• COB or SMD

• High-output strips compatible due to deeper body
