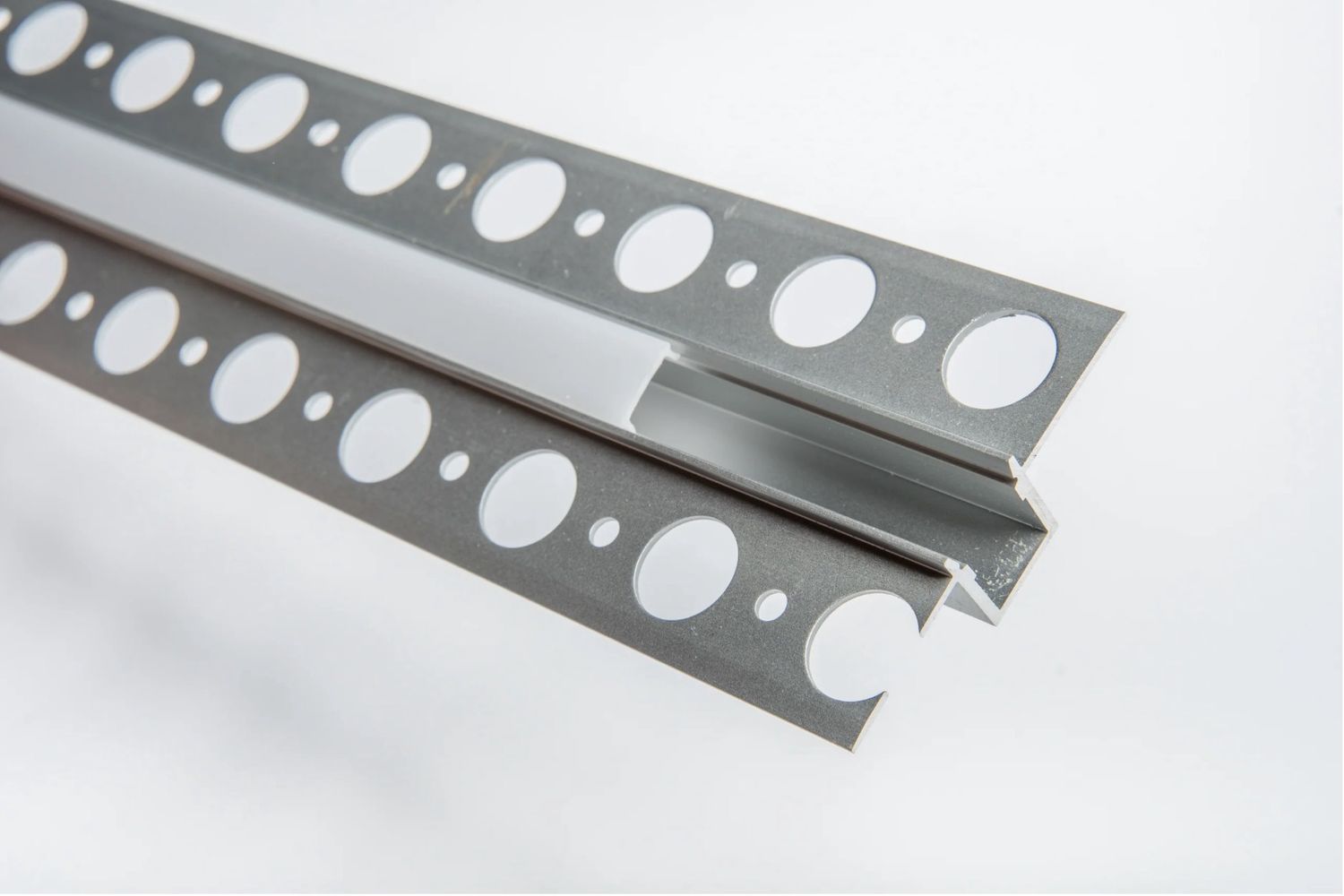

PV| Trim less Post Drywall Aluminum Profile - Silver - 9.6mm inside

The PVAC-F18 is a trim less post-drywall aluminum profiledesigned for seamless architectural lighting. Installed after drywall and finished with plaster or joint compound, the F18 creates a frameless, recessed LED light line that blends smoothly into walls or ceilings with zero visible trim.

With a 9.6mm inner channel and 12.5mm × 13.4mm body, this profile is compatible with most standard LED strips, including COB and SMD models. The white opal diffuserproduces a soft, uniform glow ideal for ambient lines, feature lighting, and modern interior detailing.

The PVAC-F18 includes two end caps—one open for wire pass-through and one closed—to support clean installation.

Recommended Applications:
• Trimless wall or ceiling linear lighting
• Feature wall accents and architectural reveals
• Hallways and ambient perimeter lighting
• Modern residential and commercial interiors
• Hidden linear lighting in drywall constructions

Included Components:
• White opal diffuser
• 2 × end caps (open + closed)

Dimensions:

• Outer body: 12.5mm (W) × 13.4mm (H)

• Inner channel: 9.6mm

Profile Style:

• Trim less post-drywall (plaster-over)

Finish:

• Silver anodized

Diffuser:

• White opal (uniform glow)

Materials:

• Aluminum extrusion

• Polycarbonate diffuser

Accessories Included:

• 2 × end caps (open + closed)

LED Strip Compatibility:

• 8mm and 10mm LED strips

• COB or SMD

• Ideal for low-glare architectural applications
